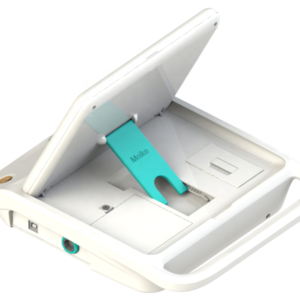

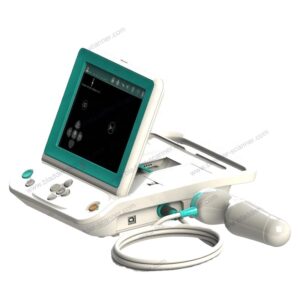

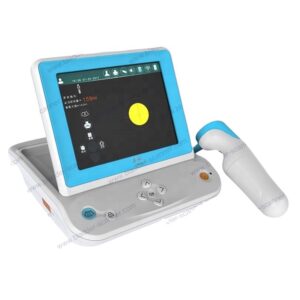

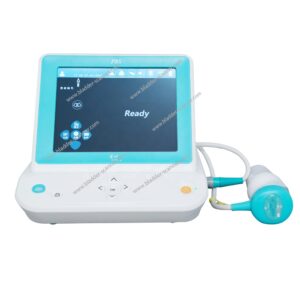

Portable Ultrasound Bladder Scanner PBSV5.1


  FOB Reference Price: >>Get Latest Price

Login to view prices


Meike ultrasound bladder scanner PBS V5.1, with advanced scanning technology and patented algorithm, is a portable 3D ultrasound instrument that quickly, accurately, and noninvasively measures urinary bladder volume and post-void residual(PRV) in adults and small children.
Portable 3D ultrasound bladder scanner instruments measure bladder volume. They provide accurate data to aid in the diagnosis of common urological conditions, to assess urinary retention, to help prevent unnecessary catheterization, and to reduce rates of catheter-associated urinary tract infection (CAUTI).
1) Helps assess urinary retention and postoperative urinary retention (POUR).
2) Helps prevent unnecessary catheterization.
3) Helps reduce rates of catheter-associated urinary tract infection (CAUTI).
4) Helps improve efficiency, reduce costs, and save staff time.

1) Quickly, accurately, and noninvasively measures bladder volume.
2) High precision: with innovative patented probe and algorithm system.
3) Mass storage: 2400 pictures for 100 cases max.
4) More intuitive: real-time scanning function.
5) Easy to operate: with a user-friendly interface, no sonographer is needed.
6) Exam data retainable and printable (for patient records or reimbursement).
7) USB port can be used to upload records and upgrade software.
8) Can be calibrated with Meike tissue-equivalent Phantom and in-house calibration system.



Transducer frequency 2.6 MHz
Scan method 3D mechanical sector scanning
Measurement method Automatic measurement and Display
Display mode Volume result, Last Volume Result,
Present Location, B mode Image(12/24 planes)
Accuracy ±15%, ±15ml (0~150ml), ±10%, ±10ml (150~999ml),
on Meike tissue-equivalent phantom.
Bladder Volume Range 0- 999ml
Scan depth ≥140mm
Sway Angle 95°±2°
Rotating Angle 180°±2°
Planes 12/24/multiple planes
Storage Capacity 100 cases(Max2400 pictures)
Case management Store, Browse, Upload,
Patient ID 18 Figures
Scan Mode Male, Female, Pediatric(Residual)
Display screen 8.4″Color LCD TFT screen
Language English; French; Germany; Spanish
Power supply 8 Batteries
Voltage: 7.4V
Capacity: ≥4200mAh(4Hours)
charge time:3.5-4 Hours;
Input Voltage of the Adapter: All countries supported
Output Voltage of the adapter: DC 9.0V
Output Voltage of Charger: 8.5V
Device Dimension 310x260x50mm
Net weight 2.1KG




Min Order


Payment Terms

Paypal, T/T


Ningbo, Shenzhen
